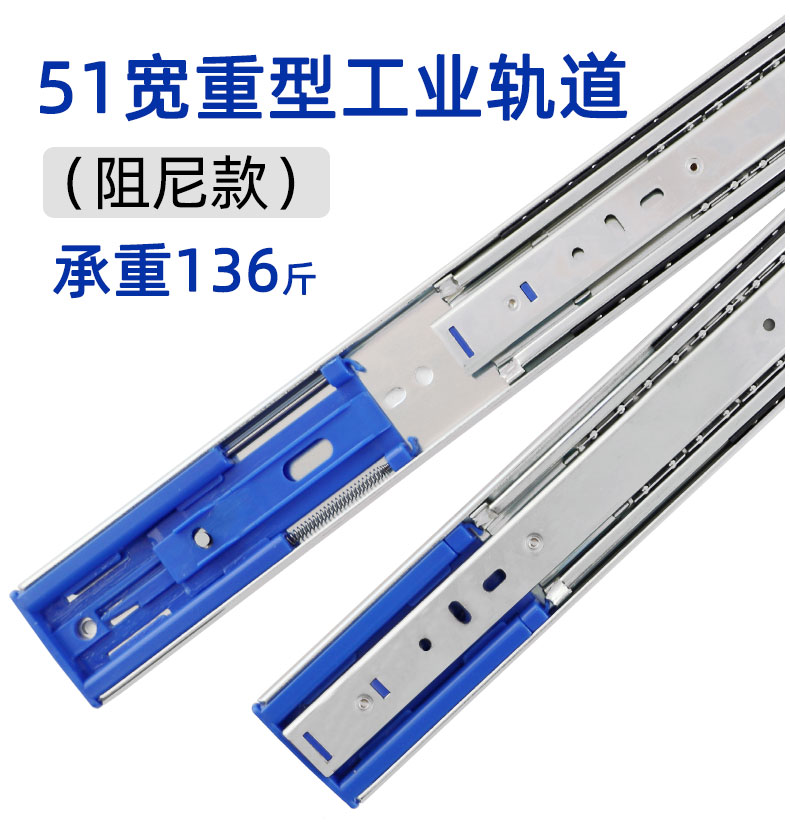

SHJY.51171051TP.CONSLD (伸缩滑轨) 40-75kg/pair

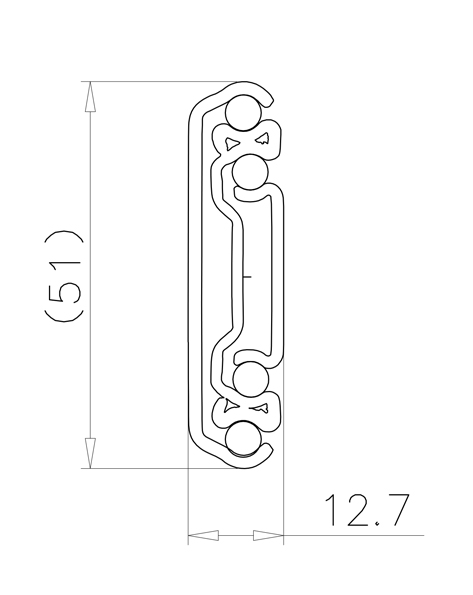

| 安装间隙: | 12.7mm |

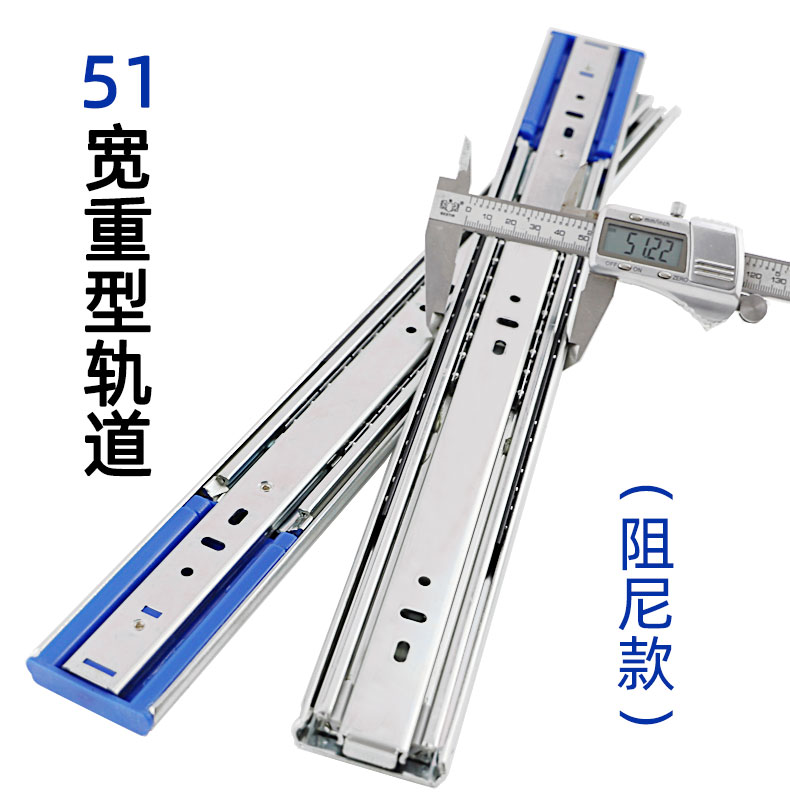

| 高度: | 51mm |
| 闭合长度: | 300-600mm |
| 延展长度: | 300-600mm |
| 最大载重: | 40-75kg/pair |
| 滑轨节数: | 3 |
| 延展程度: | Total |
| 材质: | Cold rolled steel Q235 |
| 抗震动性: | 5 |

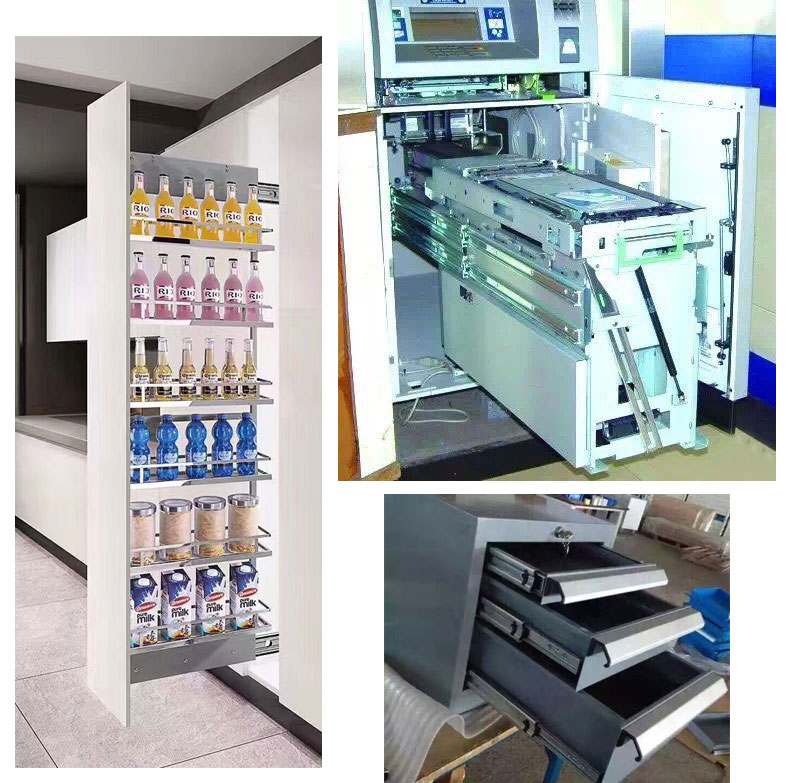

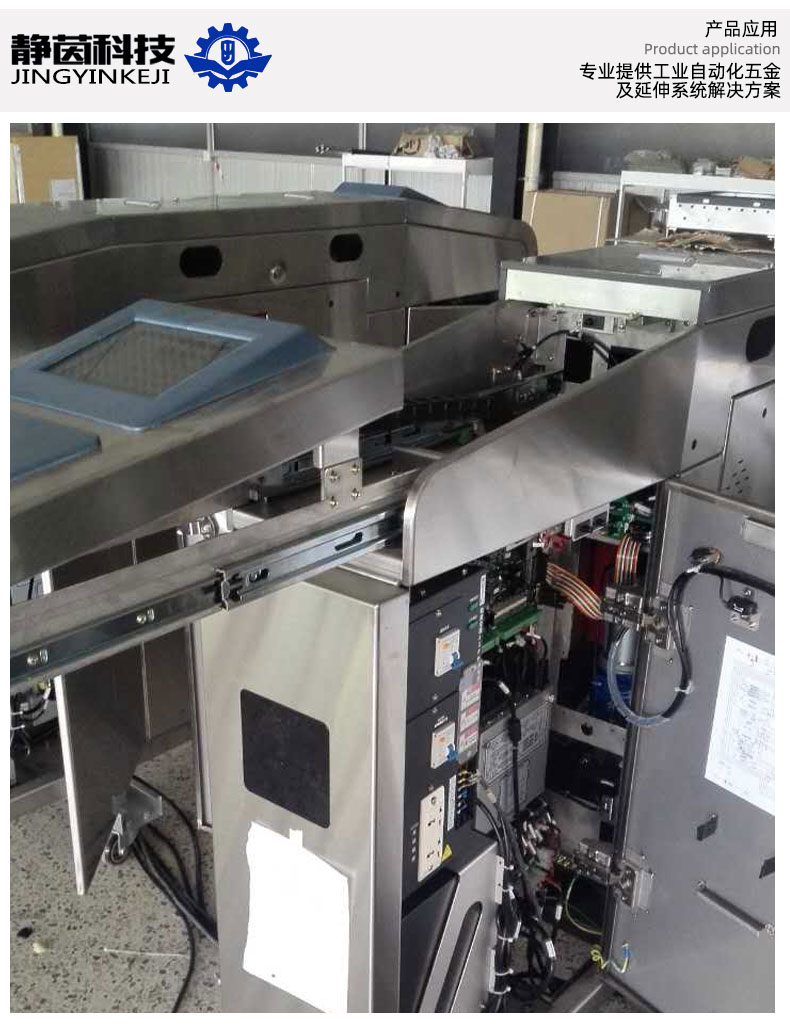

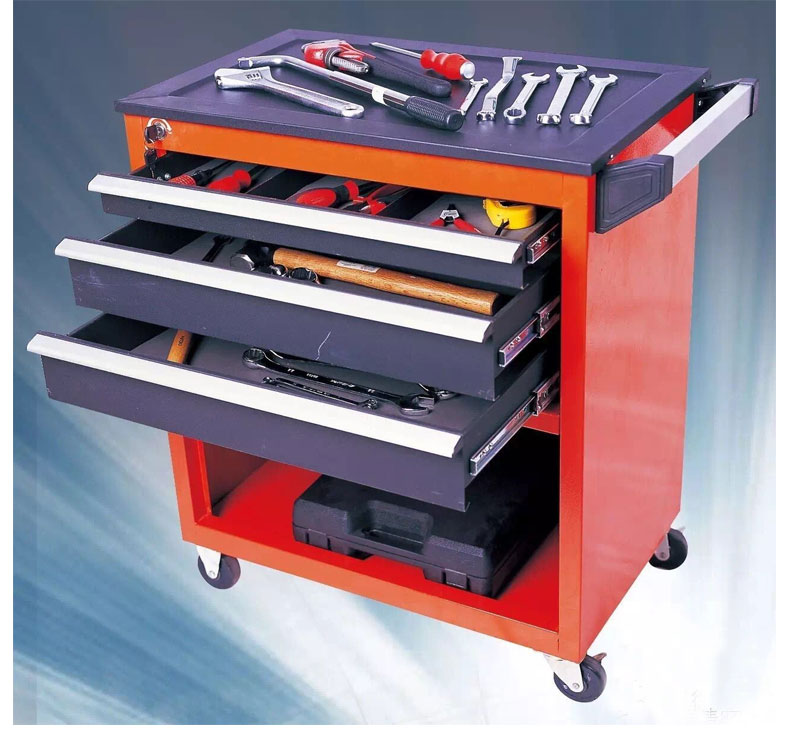

SHJY.51171051TP为一款冷轧成型的重载全展滑轨, 具备节省预算的价位，性价比高。引进进口设备生产具有质量稳定,寿命长,顺滑度好等特点.可通用在大多数领域。一般经常被运用在军工战斗车辆、军舰船舶、医疗食品器械、光伏支架、商用车辆及救护、房车、消防车辆、工具箱的抽屉系统。具备标准12.7mmX51mm规格, 滑轨长度从300mm (12") 到600mm (24"), 常规备货到60寸,其它规格可以咨询,也可以提供耐高温版本.可接受定制载重能力介于 40kg/对 (460lbs) 到 75kg/对 (396lbs)之间。滑轨被测试到500,000循环。
产品编号 | 闭合长度 (mm) | 延展长度 (mm) | 最大载重 (kg) |
|---|---|---|---|
| 5117.SHJY.5101TP.012 | 300mm | 300mm | 70kg |
| 5117.SHJY.5101TP.014 | 350mm | 350mm | 70kg |
| 5117.SHJY.5101TP.016 | 400mm | 400mm | 70kg |
| 5117.SHJY.5101TP.018 | 450mm | 450mm | 70kg |
| 5117.SHJY.5101TP.020 | 500mm | 500mm | 65kg |
| 5117.SHJY.5101TP.022 | 550mm | 550mm | 60kg |
| 5117.SHJY.5101TP.024 | 600mm | 600mm | 55kg |
| 5117.SHJY.5101TP.026 | 650mm | 650mm | 50kg |
| 5117.SHJY.5101TP.028 | 700mm | 700mm | 45kg |
| 5117.SHJY.5101TP.030 | 750mm | 750mm | 40kg |
| 5117.SHJY.5101TP.032 | 800mm | 800mm | 35kg |
型录＆主要产品资讯
SHJY.5117.5101TH.010 length 250mm- 3D STEP FILE -
SHJY.5117.5101TH.010
SHJY.5117.5101TH.012 length 300mm- 3D STEP FILE -
5117.SHJY.5101TH.012
SHJY.5117.5101TH.014 length 350mm- 3D STEP FILE -
SHJY.5117.5101TH.014
SHJY.5117.5101TH.016 length 400mm- 3D STEP FILE -
SHJY.5117.5101TH.016
SHJY.5117.5101TH.018 length 450mm- 3D STEP FILE -
SHJY.5117.5101TH.018
SHJY.5117.5101TH.020 length 500mm- 3D STEP FILE -
SHJY.5117.5101TH.020
SHJY.5117.5101TH.022 length 550mm- 3D STEP FILE -
SHJY.5117.5101TH.022
SHJY.5117.5101TH.024 length 600mm- 3D STEP FILE -
SHJY.5117.5101TH.024
